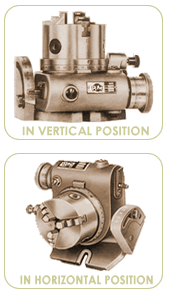

Universal Index Fixture Model : UIF - 110

Salient Features

  • Compact design for a fixture having both swiveling and Tilting arrangement.
  • Suitable for working at desired single or compound angle on any machine.
  • Indirect indexing on Indexplate or degree graduations by easy disengagement of worm from worm wheel.
Specifications
Dia. of 3 Jaw true chuck 100 mm
Chuck Swivels 0-360º
Chuck Tilts 0-90º
Min. reading on direct scale 1º
Min. reading on Auxilary scale (Dial) 1'
Overall length 260 mm
Overall breadth 230 mm
Overall height 175 mm
Max. height when tilted at 90º 240 mm
Approximate weight 16 Kg

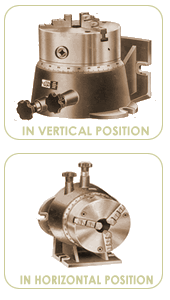

Vertical & Horizontal Index Fixture Model : VIF

Salient Features

  • Rigid Construction and Free Movement
  • Totally enclosed Mechanism Protected from Dust & Chips.
  • Designed for Mounting Vertical or Horizontal.
  • Chuck Swivels 360º.
  • Accurate & Quick Direct Indexing by fixed Division Index Plate.
  • Positive locking device provided.
  • Extra Index Plates of desired Division can be tailormade as required.
Specifications
Model VIF - 160 VIF - 200
Size of 3 Jaw True Chuck supplied 160 mm 200 mm
Hole through Chuck 42 mm 55 mm
Max. Height with Chuck when mounted Vertically 175 mm 230 mm
Max. Height when mounted Horizontally 300 mm 370 mm
App. Center heigh of Chuck in Horizontal position 135 mm 160 mm
App. Overall Dimension (Breadth x Depth) 250 x 300 mm 330 x 370 mm
Center Distance of Bolts for Horizontal Mounting 135 mm 180 mm
Center Distance of Bolts for Vertical Mounting 235 mm 290 mm
Standard Index Plate supplied with Fixture 24 Div. 24 Div
Indexing Accuracy 0º, 15' 0º, 15'
Graduation on Chuck Flange 0-360º 0-360º
App. Net weight with Chuck 25 Kgs. 40 Kgs.

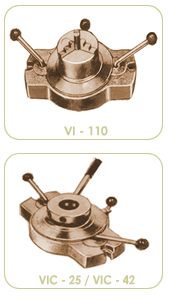

Vertical Index Fixture

The Vertical Index Fixture is developed for various production Jobs on Milling, Drilling, Boring and Grinding Machines.
Double readjustable locking levers ensure positive locking and Perfect Vibration free working.
Indexing can be carried out directly by 0-360º graduated collar, as well as by Index Plate of 24 Notch supplied alongwith Fixture.
The Base Plate is splash-proof and provided with an interchangeable index-plate. Special index Notch Plate on request.
For holding the Job, Self Centering True Chuck with reverse jaws is provided in VI-110, and in case of VIC-25/VIC 42 standard collet of Traub A-25/A-42 can be conveniently used.

Specifications

Model VI - 110 VIC-25/VIC-42
Size of 3 Jaw True Chuck (Fitted) 100 mm --
Suitable Collet (Supplied Extra) -- Traub A-25 / A-42
Hole through Chuck 22 mm --
Total Height 130 mm with chuck 90 mm
Total Length 270 mm 270 mm
Total Width 180 mm 180 mm
Distance Between clamping Slots Approx. 235 mm 235 mm
Std. Index Plate supplied with Fixture 24 div. 24 div.
Indexing Accuracy 0º, 15' 0º, 15'
Graduation on flange 0-360º 0-360º
Appx. Weight 12 Kgs. with chuck 10 Kgs.

Note : Max. Cap. of Traub A-25 Collet is 25mm/1" Dia.
_____-Max. Cap. of Traub A-42 Collet is 42 mm/1.5/8" Dia.


Non Indexing Collet Fixture

  • Split second clamping & unclamping of Job.
  • Variety of Second operation work-Turning, milling, Drilling, Tapping, Shapping & Boring carried out.
  • Base of Casting & collet sleev & Nut of Hardened & Ground steel.
Specifications
Model To Suit Length Width Height Nut Dia. Collet Cap. Max. Clamping Bolt Center
NICF-25 TRAUB A-25 Collet 210 110 115 110 27 mm 170 mm
NICF-42 TRAUB A-42 Collet 210 110 115 110 42 mm 170 mm
NICF-H2D HERBERT-2D Collet 210 110 115 110 38 mm 170 mm
