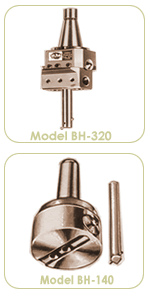

Precision Micro Boring Heads: Model : BH

Specifications (in mm)
Model No. BH-320 BH-140
Boring Cap. with standard Boring Bars 15 to 320 mm 10 to 140 mm
Min. Cut adjustment (Radially) 0.01 mm 0.01 mm
Max. Travel of Tool Holder 25 mm 15 mm
Bore dia. to hold Boring Bars 20 mm 12 mm
Dia. of Std Boring Bars 12 & 20 mm 6 & 12 mm
Overall Size Without Shank
(Width x Length x Height)		 70 x 80 x 90 70 O/D x 60 height
Net Weight App. (W/o. Shank) 3.5 Kgs. 1 Kg.
Standard Accessories

(Supplied with Boring Head) 2 Boring Bars with HSS tool. 1 Spanner 1 Sleeve 2 Allen Keys 2 Boring Bars with HSS tool, 2 Angle tool Holder, 1 Sleeve, 1 Allen Key.


Mini Borer : Model : MB-40
Having Max. Cap. 40 mm
Specifications

Max. Boring Cap. 40 mm
Min. Cut adjustment (Radially) 0.01 mm
Max. Travel of Tool Holder 8 mm
Bore Dia for Tool 8 mm
Body Dia. 40 mm
Height without shank 40 mm
Shank (Option) 12Ø x 35 mm long or MT-1
Approx. Weight 400 grms
Std.Accessories 2 Nos.
Allen Keys


Universal Boring & Facing Head : Model : BFH

It is an ideal tool with which it is possible to carry out operations like Facing Boring, Turning, Recessing, Taper Turning in conjuction with axial Feed of Boring Machine, Threading can also be done provided Boring Machine is equipped with a lead screw. Standard Shanks available are Morse Taper and ISO. All other shanks are made to Customer requirements . Can be used on Boring Machines, Jig Borers, Milling Machines, Radial Drilling Machines and Lathes.



Model
BFH-162 BFH-350 AR

Boring Cap. Max. mm 162 350

Facing Cap. Max. mm 162 350

Max. Travel of Slide mm 22 30

No.of Feed Per Rev.
Auto Feed Per Rev. (Radial)		 No.
mm		 1
0.083		 1
0.05		 2
0.1		 3
0.15

Fine Adjustment mm 0.01 0.01

Height of Head W/o Shank mm 70 95

Diameter of Head mm 70 90

Diameter of Tool Holes mm 12 20

Shank (Recommended)
MT-2 to MT-6, ISO-30 to ISO-60 MT-3 to MT-6, ISO-40 to ISO-60

Max. Allowable Speed (For Broing only) RPM 1000 RH only 700 RH only

Standard Accessories
Alley Key 2 No.
Stop Rod 1 No.		 Allen Keys - 2 Nos. Stop
Rod - 1 No. Nut Wrench - 1 No.

Weight (W/O) Shank Kgs. 1.700 3.900
